DESCRIPTION

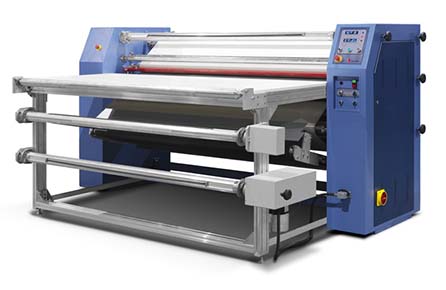

The Transmatic 7460/7472 SPORTS has been specially designed for digital printing on cutted pieces and placed prints. This application is indicated especially in the field of printing of sport shirts. A new system of heating oil ensures a uniform temperature distribution over the entire length of the cylinder with a minimum consumption of energy. The heating systems oil Transmatic consume 50% less energy of electric machines. The diameter of the drum 35 cm/ 13.8 ” is suitable to the needs of digital printing.
SPECIFICATIONS
- Power installed: 15.5 KW – 67 A / 18 KW – 73 A
- Average Consumption: 6.9 KW – 30 A / 8.1 KW – 35 A
- Belt size: 170 cm / 190 cm
- Working width: 160 cm / 180 cm
- Weight: 1450 kg / 1900 kg
