DESCRIPTION

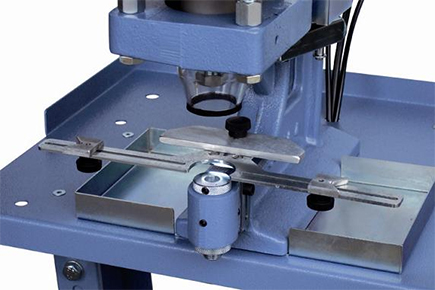

Pneumatic applicator for small metal items for unusual sizes and/or thicknesses. The 20 membrane cylinder fitted on the machine develops a pressing force of 900kg/8bar. Complete with hand guard device according to CE standards. Usable depth working 110 mm. Adjustable bed height and buttons holder containers as standard supply. Factory-set for installation of the luminous positioner (cross or red point) and for the button distance reference guide. Two versions : GS/S-DC one head ; GS/D-DC two heads (for one operator). On request, it is possible to have the machine with a 30 membrane cylinder (15000kg/8bar).
SPECIFICATIONS
- Compressed air supply: 8 bar
- Working pressure: 3÷8 bar
- Air consumption per cycle (per head - 6 bar): 4,29 N/L
- Cylinder force (6 bar): 670 Kg
- Distance between die holders: 85 mm
- Processing cycle: 3÷8 s
- Net weight: 49 Kg
- Measure hole for lower matrix holder Ø 12,2mm
