DESCRIPTION

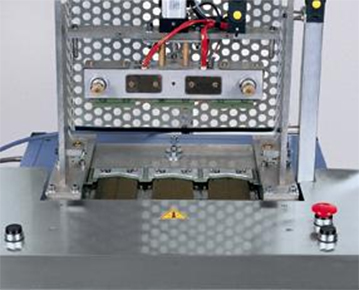

Steam creasing and fusing machine for breast pocket. Available in two versions: 240PE with two forms and 340PE with three forms. The machine fuses and irons the edges, impresses the halfway mark and, on request, the positioning mark, all in a single operation. The forms are prepared uppon design provided by ten customer and provided whit the machine. The ironing temperature and the adhesive application temperature are completely adjustable. The work sequence is microprocessor controlled. The ironing time and steam time can be selected.
SPECIFICATIONS
- Voltage: 220V monofase
- Compressed Air Supply: 8 bar
- Compressed air consumption: 80 NI/minuto
- Steam pressure requested: 5/6 Kg/cm2
- Pressing surface resistance: 2500 W
- Upper resistances power: 100x4 W
- Number of moulds: 3
