DESCRIPTION

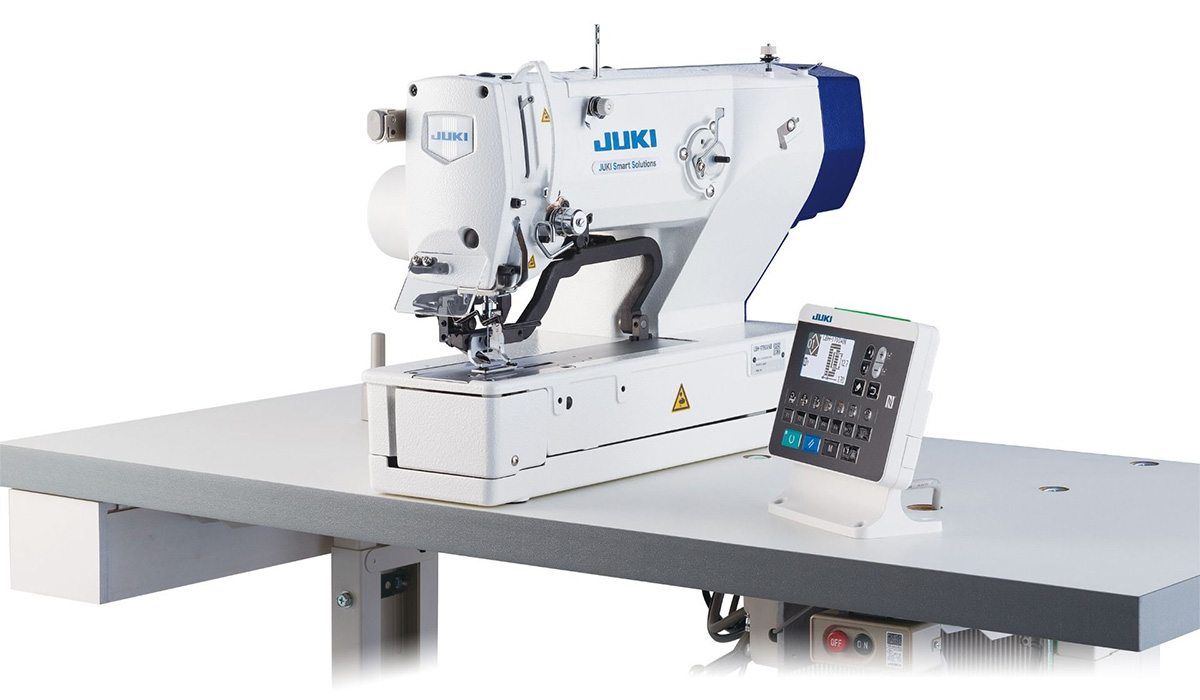

Computer-controlled, high-speed, buttonholing machine. The LBH-1790A Series follows the world's highest sewing speed and dry-head mechanism. The thread tension and all drive mechanisms are electronically controlled. Twenty different programs can be registered, and as many as 15 different patterns can be stored in one program.
VERSIONS
LBH-1790ANB, LBH-1790AN, LBH-1795AN, LBH-1796AN
SECIFICATIONS
- Max sewing speed: 4,200sti/min
- Size of cloth cutting knife: 6.4~31.8mm
- Bartacking width: Max. 5.0mm (on request 10mm)
- Buttonhole length: Max. 41mm (on request: 70mm, 120mm)
- Needle system: DPX5
- Lift of the work clamp: 14mm
- Number of standard patterns: 31
- Number of patterns that can be input: 91
- Silent servo direct drive motor
- Stabile stand
- Quality table
