DESCRIPTION

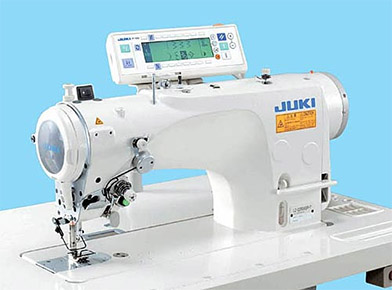

Computer-controlled direct-drive high-speed one needle lockstitch, zigzag stitching machine, which is is extremely versatile and can perform many different stitching patterns. The machine is also provided with a newly-developed operation panel, the IP-100. With this operation panel, you can easily establish settings. The machine is provided as standard with fourteen different basic zigzag stitching patterns grouped into eight different types.
VERSIONS
Beside machine with minute lubrication and thread trimmer are available also dry head with and without thread trimmer. Available also anti material slip version of machine.
SPECIFICATIONS
- Maximum sewing speed: 5000 rpm
- Maximum zigzag width: 10mm
- Lift of the presser foot By hand: 5.5mm/By knee: 10mm
- Number of patterns for standard stitching: 8 types/14 patterns
- Internal memory max. 20 patterns/10,000 stitches
- Extended memory max. 999 patterns/499,500 stitches
- Maximum number of stiches: 500 stiches/pattern
- Silent direct drive servo motor
- Stabile stand
- Quality table
