DESCRIPTION

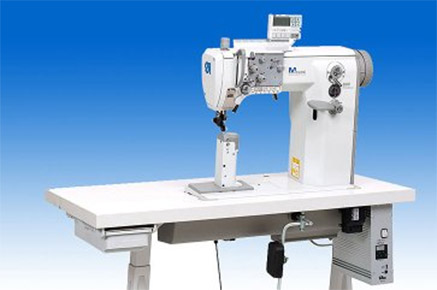

Single-needle lockstitch postbed machne. With its outstanding performance parameters this series is setting new standards as regards stitching operations in the shoe production. In conjunction with the needle feed and the driven roller foot the double feeding of the wheel bottom feed ensures quiet and smooth sewing with exact stitch length, even when sewing over extremely thick spots. The manual back-tacking device ensures a "stich-in-stich" back-tacking.The special sewing kinematics allowing to use a thread variety unrivalled so far makes this series a promising operating means of universal use. Automatic thread trimmer, presser-foot lift and back-tacking with push-button are decisive factors for a high productivity.
SPECIFICATIONS
- Highest precision on stitch locking, even during sewing speed changes
- The powerful and effective feeding system with wheel feed, needle feed and driven roller presser guarantees excellent material feed when processing different material thicknesses Automatic bobbin winder with start up function
- Manual switchable second thread tension for optimized sewing results (ECO)
- Easy throat plate change without tools(single needle machines)
- Easy replacement of wheel feeder without tools (single-needle machines)
- Needle change without tools(single needle machines)
- New lubricating system with central oil tank and oil pump
- Clearance – Arm Depth 11″ (280 mm) x Base to Head 11.8″ (300 mm)
- Maximum stitch length: 7 mm
- Clearance under presser foot: max. 7/16″ (12 mm)
- Thread: up to 138 top
- Top load bobbin: Large vertical hook
- Needle System: 134 System
- Needles: 1
