DESCRIPTION

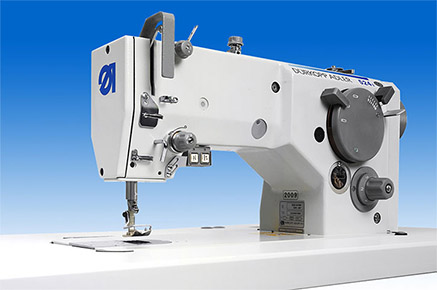

Easy stitching of various types of textile and light-weight leather materials. Machines are equipped with large capacity hook, maximum zig zag width is 10 mm. Ideal sewing characteristic, universal use, easy handling and high reliability – all of these features are asked for in the zigzag sector. The lockstitch zigzag sewing machines classes 523i/524i/527i fulfil these demands in every aspect. Wide range of zigzag operations from light to heavy weight textile and leather materials as well as synthetic fabrics can be easily realised with the machines.
VERSIONS
Machine is available in two versions: 524i-811 (without underbed thread trimmer), 524i-847 (with underbed thread trimmer).
SPECIFICATIONS
- Automatic lubrication and a reservoir in the machine arm reduce maintenance, guarantee the correct lubrication doses and protect the hook against wear
- Adjustable bobbin break spring (CLASSIC) – the force of the spring can be adjusted by a regulation spring for better stitching results
- Bobbin winder with easy adjustment of max. value
- Ideal working conditions for the operator by low noise level and minimized vibrations
- Easy adjustment of zigzag width with low force
- Stitch length: 5mm
- Sewing speed: 4400 stitches/min
- Material: M, MS
- Throw width: 10mm
- Needles: 1
