DESCRIPTION

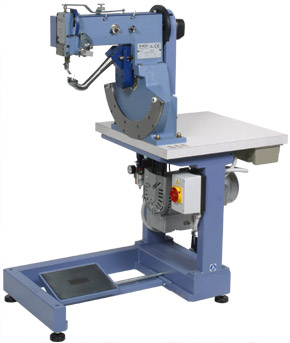

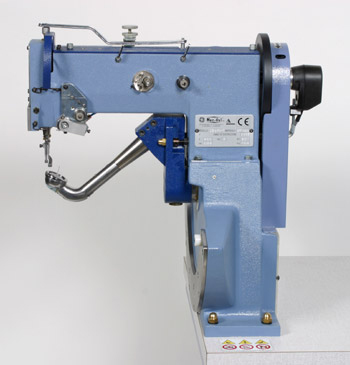

Mec-Val CS 87 SPP is a two threads lockstick sewing machine with fixed horn for shoes and little shoes with special profiles.
New fixed horn shaped to solve stitch problem on little shoes and special soles. Double feeding: foot and needle ensure a constant length of the stitch. Programmable electronic motor. Pneumatic lifting of the foot. Possibility to modify foots and feeding group. Possibility to change the horn with horn 87 P or horn 87.
SPECIFICATIONS
- Max speed (stitches/min): 800
- Min - max stitch length: 3 / 8 mm
- Needle system: 16x63 nr. 140/200
- Ø max interlaced thread: 1 mm.
- Motor power: 0,75 Kw.
- Over-all dimensions: 110x63x125 cm.
- Net weight: 134 Kg
- Medium daily production: 300 / 500 pairs
