DESCRIPTION

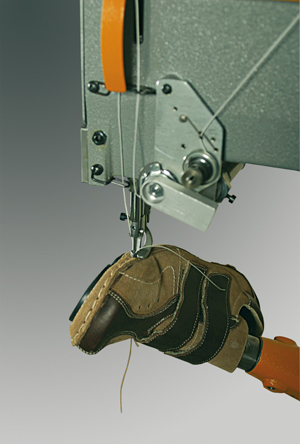

Mec-Val CS 87 is a two threads lockstitch sewing machine for shoes and ankle boots with opanka (box) soles.
High output rotary hook action stitching to sew up to 10 pairs of shoes without changing the bobbin. Double feeding: foot and needle ensure a constant length of the stitch. The floating horn supports the hook, and has a special profile to make sewing around the toe and heel areas easy, even on closed ankle boots. Programmable electronic motor. Pneumatic lifting of the foot.
SPECIFICATIONS
- Max speed (stitches/min): 800
- Min - max stitch length: 3 / 8 mm
- Needle system: 16x63 nr. 140/200
- Ø max interlaced thread: 1 mm.
- Motor power: 0,75 Kw.
- Over-all dimensions: 110x63x125 cm.
- Net weight: 134 Kg
- Medium daily production: 800 / 900 pairs
