DESCRIPTION

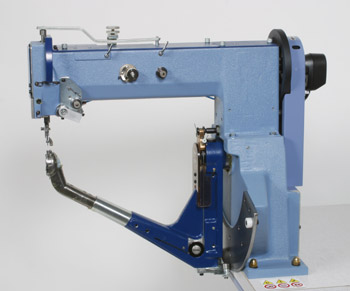

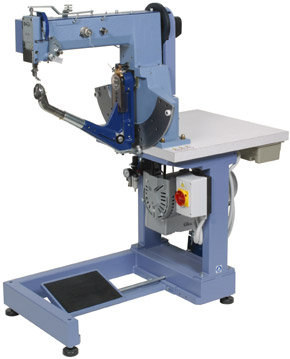

Mec-Val CS 87 L is a two threads lockstitch sewing machine with long head and horn to stitch shoes and high boots with opanka soles, bags and leather goods.
High output rotary hook action stitching to sew up to 10 pairs of shoes without changing the bobbin. Double feeding: foot and needle ensure a constant length of the stitch. The floating horn supports the hook, and has a special profile to make sewing around the toe and heel areas easy, even on closed ankle boots. Programmable electronic motor. Pneumatic lifting of the foot. The machine is very easily to be used by female operators. Possibility to change the horn with 87 LSP.
SPECIFICATIONS
- Max speed (stitches/min): 800
- Min - max stitch length: 3 / 8 mm
- Needle system: 16x63 nr. 140/200
- Ø max interlaced thread: 1 mm.
- Motor power: 0,75 Kw.
- Over-all dimensions: 110x63x125 cm.
- Net weight: 145 Kg
- Medium daily production: 800 pairs
