DESCRIPTION

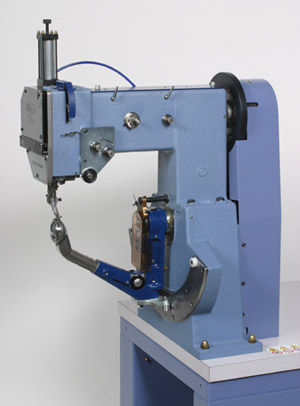

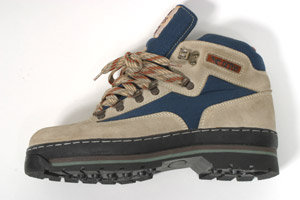

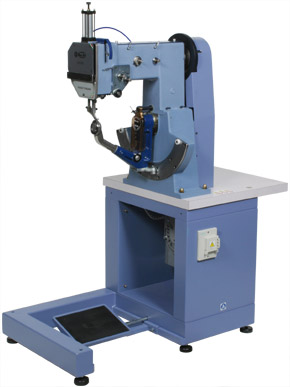

Mec-Val CS 93 S is a heavy head two threads lockstitch sewing machine for shoes with opanka soles.
High output rotary hook action stitching to sew up to 10 pairs of shoes without changing the bobbin. Double feeding: foot and needle ensure a constant length of the stitch. The floating horn supports the hook, and has a special profile to make sewing around the toe and heel areas easy, even on closed ankle boots. Programmable electronic motor. Pneumatic lifting of the foot. The machine is very easy to be used by female operators. Possibility to change the horn with 96 o corno 93 I.
SPECIFICATIONS
- Max speed (stitches/min): 850
- Min - max stitch length: 3 / 13 mm
- Needle system: 328R
- Ø max interlaced thread: 1,2 mm.
- Motor power: 0,75 Kw.
- Over-all dimensions: 115x65x148 cm.
- Net weight: 223 Kg
- Medium daily production: 800 / 900 pairs
