DESCRIPTION

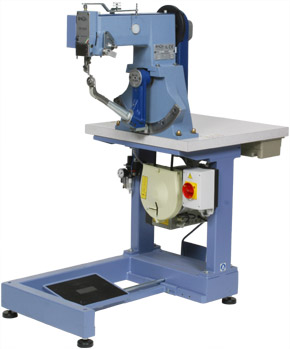

Mec-Val CS 82 N is a one-thread chainstitch sewing machine for shoes with opanka soles.

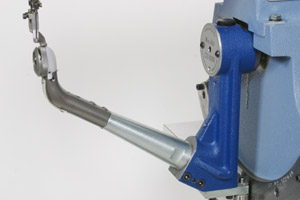

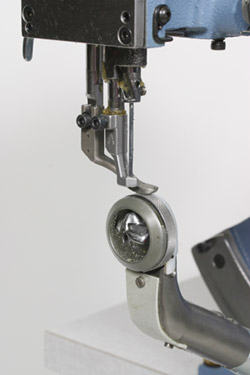

Machine with rotary hook action sewing with continuos thread for inner chain-stitch. Double feeding: foot and needle ensure a constant length of the stitch. The horizontal floating horn supports the hook, and has a special profile to make sewing around the toe and heel areas easy, even on closed ankle boots. Electronic motor. Pneumatic lifting of the foot. The machine is very easily to be used by female operators.
SPECIFICATIONS
- Max speed(stitches/min): 750
- Min - max stitch lenght: 3 / 8 mm
- Needle system: 190R nr. 140/200
- Ø interlaced thread: 0,8 mm.
- Motor power: 0,75 Kw.
- Over-all dimensions: 110x63x126 cm.
- Net weight: 134 Kg
- Medium daily production: 800 pairs
