DESCRIPTION

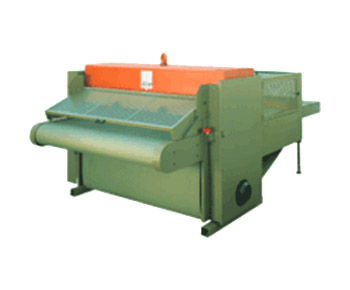

Employing all of the advantages of the series 6 the BP version is fitted with a cutting belt and a 'pinch & grab' clamp system. This enables the transportation and cutting of thick and multi-layer materials, both in roll and sheet form. With Atom's comprehensive and accurate nesting software up to 20 cutting cycles per minute is possible, completed using maximum speed against best possible yield.
All models in the BP series are equipped with mechanical stops, to ensure micrometric adjustment of the cutting depth. Additional optional devices available are:
- Extension of the 'take off' unloading surface of approx. 900mm
- Cutting pad, moved by the rear clamp, this option is effective where deep penetration into the belt is required to cut the material, therefore making a cutting belt to expensive to use in such an application
- Electrically controlled die tool guides, this option allows the quick change of die as the guides are quickly moved to the width of the new die board, automatically centring if required
SPECIFICATIONS
- Cutting Table (mm): 1600x1050
- Cutting Power (t - kN): 100-981
- Stroke (mm): 200
- Daylight (mm): 205
- Cutting Speed Approach - Cut - Return (mm / sec): 251 - 17 - 216
