DESCRIPTION

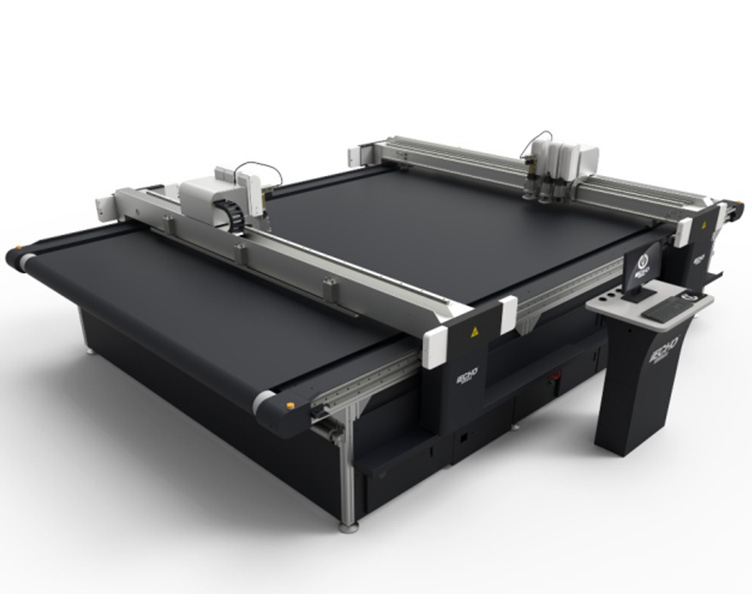

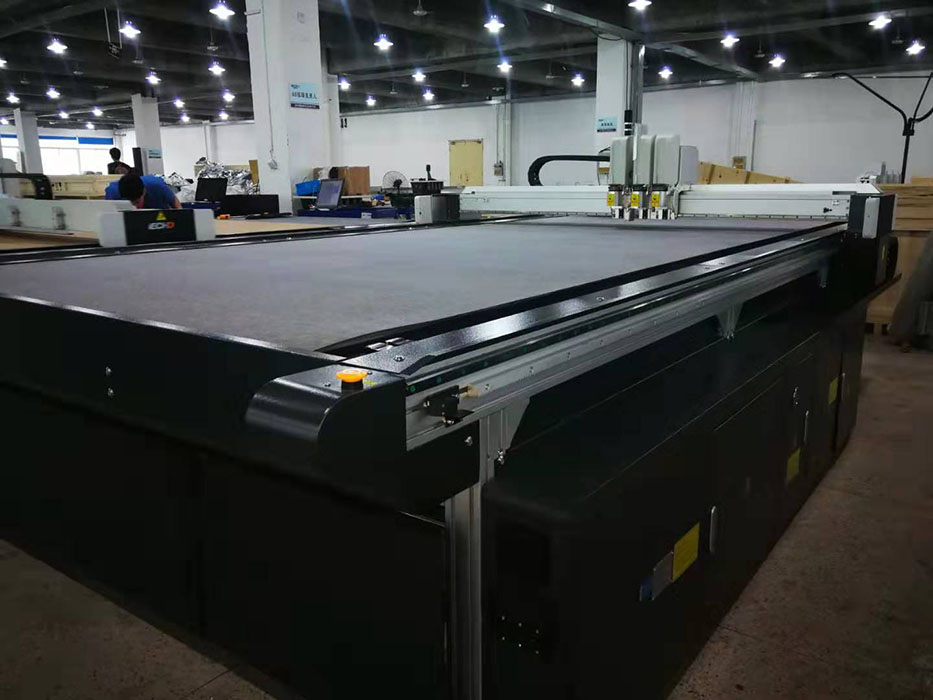

IECHO TK4S big format cutting system provides the best choice for multi-industries automatic processing. Its system can be precisely used for full cutting, half cutting, engraving, creasing, grooving and marking. Meanwhile, precise cutting performance could meet your large format requirement. User friendly operating system will show you the perfect processing results. In addition a redesigned machine body give more space under the machine, a control box is placed at the side of the machine which makes it easier to conduct maintenance, also there are less cables and wires which makes the whole control box more neater and cleaner.
Special Features:
- Diversified Cutting Tools - In order to meet different industrial cutting requirements, the cutting head can be flexibly chosen from the standard head, punching/notching head, and milling head.
- IECHO Automatic Camera Positioning System - Equipped with high precision CCD camera, the system realizes automatic position on all kinds of materials, automatic camera registration cutting,and solves problems of inaccurate manual position and print distortion.
- Higher Efficiency Cutting Head - Cutting speed can reach to 1,5m/s which is 4-6 times faster than other traditional heads. Intelligent control of Z-ais height decreases cutting tools moving distance, shortens working time and thus improves the production Efficiency.
- IECHO Safety Device - An anti-collision protective device and infrared blocking device ensures operator’s safety at most high speed working conditions.
- Dual Beams Cutting Systems - Equipped with double beams cutting system IECHO TK4S Guarantees increased production efficiency.
MODELS
- IECHO TK4S 2516 (2500 x 1600 mm)
- IECHO TK4S 3516 (3500 x 1600 mm)
- IECHO TK4S 5516 (5500 x 1600 mm)
- IECHO TK4S 2521 (2500 x 2100 mm)
- IECHO TK4S 3521 (3500 x 2100 mm)
- IECHO TK4S 5521 (5500 x 2100 mm)
- IECHO TK4S 2532 (2500 x 3200 mm)
- IECHO TK4S 3532 (3500 x 3200 mm)
- IECHO TK4S 5532 (5500 x 3200 mm)
- IECHO TK4S-25265 (2500 x 2650 mm)
- IECHO TK4S-1516 (1500 x 1600 mm)
- Custom size - Based on the standard size of TK4S , it is possible to customize the machine according to customer’s special requirements.
SPECIFICATIONS
- Cutting speed: 1500 mm/s
- Cutting Accuracy: 0.1 mm
- Cutting Thickness: 50 mm
- Data Format: DXF, HPGL,PLT,PDF,ISO,AI,PS,EPS,TSK,BRG,XML
- Interface: Serial Port
- Media: Vacuum System
- Power: Single Phase 220V/50Hz | Three Phase 220V/380V/50Hz-60Hz
- Pump Vacuum: 1-2 unit: 5.5 kW, 2-3 unit: 5.5 kW, 3-4 unit: 5.5 kW
