DESCRIPTION

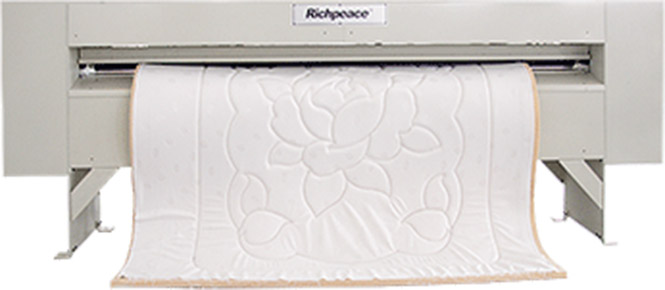

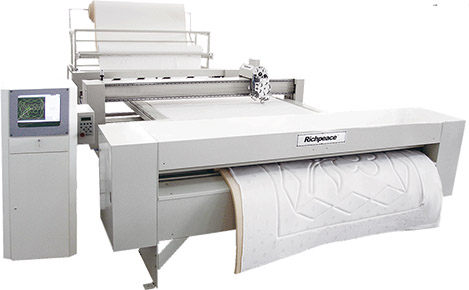

Single frame automatic feeding quilting machine with highest working speed up to 2500rpm and normal working speed from 1800 to 2200rpm with precise quilting. Automatic controlled following processes: Feeding material, spreading, clamping, quilting and cutting. Powerful quilting computer functions, such as stitch length selection, pattern resize, angle compensation and pattern adjustment, etc.
VERSIONS
RPQ-SA-2325-1-M70, RPQ-SA-2628-1-M70 and RPQ-SA-3232-1-M70.
SPECIFICATIONS
- Material size: 2580mm
- Quilting size: 2250x2440mm
- Stitch: Lock stitch
- Stitch Length: 2-6mm
- Quilting thickness: 70mm
- Speed: 2500rpm
- Installation area: 2800x10000mm
