DESCRIPTION
SEWING TEXSTILE, LEATHER, PVC, SPONGE
HEAD NUMBER: ONE
MAX QUILTING AREA: 2500X2600MM
MAX. SPEED: 3000RPM
WORKING SPEED: 2600-2800RPM
WITH AUTOMATIC HEAD LIFE UP TO 15CM
1:1 FRAME FIXED STRUCTURE;
HEAD MOVE IN X, BRIDGE MOVE IN Y
FOUR SETS PANASONIC SERVO MOTORS FOR X,Y ,HEAD AND HOOK DRIVING
HEAD AND ROTARY HOOK ARE DRIVEN SEPARATELY BY SERVO MOTORS
JAPANESE KOBAN JUMBO ROTARY HOOK
WITH AUTOMATIC THREAD CUTTING FUNCTION
GERMANY IGUS WIRE CHAIN, IGUS SINGAL WIRE
HIWIN TIANWAN LINER GUIDE RAIL
JAPAN BRAND NSK BEARING
ITALY MEGADYNE BELT
SCHNEIDER ELECTRIC COMPONENT
AIRTAC OR SMC PNEUMATIC COMPONENT
AUTOMATIC ATOMIZED LUBRICATING SYSTEM
10.4 INCHES TOUCHING SCREEN OPERATION PANEL
RICHPEACE CONTROL SYSTEM V21
INFRARED SAFTY SYSTEM
2 EMERGENCY STOP X/Y EACH
INFRARED SAFETY DEVICE 3SETS
ONE SET RICHPEACE QUILTING DESIGN SOFTWARE
ONE SET BOBBIN WINDER
2 SETS OF SIZE ADJUSTABLE ALUMINUM FRAME, 2PCS FOR SMALL SIZE & 2PCS FOR LARGE SIZE
BODY COLOR : OFF-WHITE
STANDARD ACCESSORIES & TOOL BOX
POWER SUPPLY: 3-PHASE 380V/50HZ

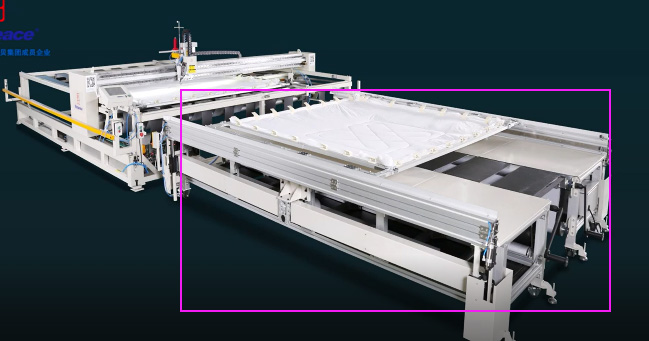

Easy frame changer
Automatic easy frame changer
