DESCRIPTION

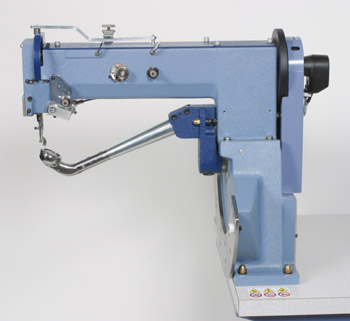

Mec-Val CS 87 LSP is a two threads lockstitch sewing machine with long head and new horn for shoes and boots with special profiles.

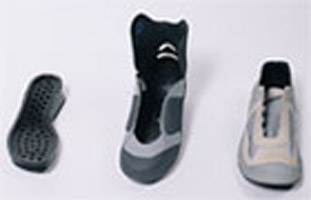

The new fixing horn supports the hook and it's shaped for solving stitching problems of shoes, boots and special soles. High output rotary hook action stitching to sew up to 10 pairs of shoes without changing the bobbin. Double feeding: foot and needle ensure a constant length of stitch. Programmable electronic motor. Pneumatic lifting of the foot. Possibility to modify foots and feeding group. Possibility to change the horn with horn CS 87 L.
SPECIFICATIONS
- Max speed (stitches/min): 800
- Min - max stitch length: 3 / 8 mm
- Needle system: 16x63 nr. 140/200
- Max interlaced thread: 1 mm.
- Motor power: 0,75 Kw.
- Over-all dimensions: 110x63x125 cm.
- Net weight: 145 Kg
- Medium daily production: 300 / 500 pairs
