Prodavač: Splendor Tekstil Zagreb (Hrvaška)
Mašina se nalazi u njihovoj proizvodnji i može se testirati.
DESCRIPTION
Rigo Line 4 is full automatic line for mask production, welding with ultrasuonic and packing.
The production line includes:
STATION I: mask welding & cutting statation 1pc
STATION II: earloops automatic welding station 2pc

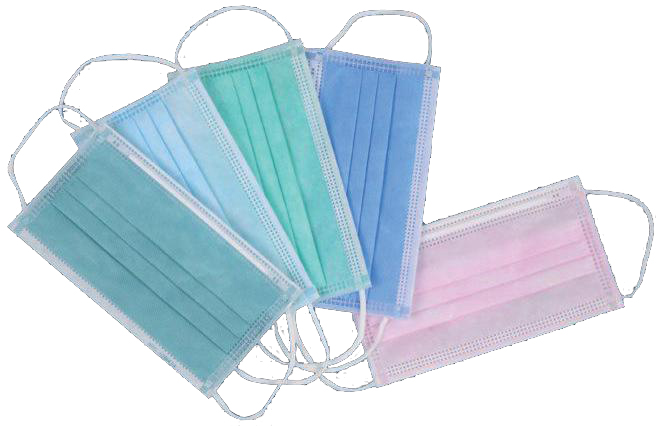

- Mask type: common mask, surgical mask
- Nose-bridge can be made with auto feeding, cutting and ultrasonic welding
- Output speed: 70 pcs/min
- Mask specification: 175mm x 95mm, 3 layers
- Processing mode: ultrasonic welding
- Earloops fixed by ultrasonic welding automatically
- Operation screen: LCD touch screen
- Air pressure: 0.6 mpa
- Power: 10kw
- Voltage: single phase 220v/50hz
- Machine dimensions: 5000mm x 7000mm x 1800mm
Dimensions of packages:
- Mask welding machine: 1 pc 1800mm x 1900mm x 1370mm = 630kg
- 1 pc 1800mm x 1900mm x 1000mm = 570kg
- 1 pc transfer system : 2560mm x 2200mm x 1600mm = 800kg
- 2 pc ear-loops welding station: 2300mm x 1900mm x 1400mm = 2 x 750kg = 1.500kg
- 1 pc material frame : 1900mm 2100mm x 900mm = 300kg

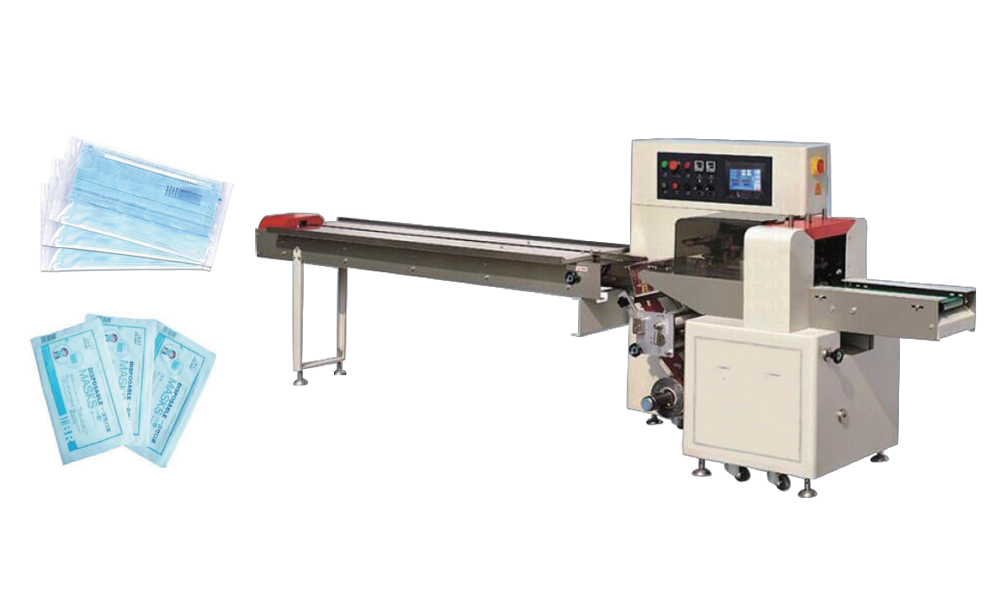

STATION III: mask bag packing station 2pcs
- Suitable for automatic bagging operations for masks
- Three-servo motor control system
- Human-machine interface
- Fault self-diagnosis function
- High-sensitivity photoelectric eye color mark tracking
- Independent pid control of temperature
- Positioning stop function
- Length of packaging bags: <400mm
- Width of packaging bags: 100-165mm
- Product height: max.55mm
- Film length: max. 360mm
- Film roll diameter: max. 320mm
- Package speed: 40-230 bags/min (support 1 -20 pcs/bag)
- Power:2.4kw
- Voltage: single phase 220v/50hz
- Dimensions of machine: 4230mm x 750mm x 1075mm
Dimensions of packages :
- Bag packing machine : 2 pc 1580mm x 840mm x 1510mm = 2 x 340kg = 680kg
- 2 pc 2540mm x 540mm x 340mm = 2 x 80kg = 160kg
