DESCRIPTION
Single head embroidery machine. Industrial tubular embroidery machine Rigo brand with one head and twelve needles, with thread trimmer and big 7'' LCD display. Working area 550x350mm, with posibility to make embroidery to caps. Automatic colour changing and thread break detection. New ergonomic touch screen allows easy and comfortable operating by right hand thumb. User –friendly operation interface with useful functions that make it easy to operate and increase efficiency. Machine reads multiple design formats, such as DST, DSB and more. Maximum speed is 1200 rpm, with USB port for inserting programs.
FRAMES INCLUDED
- 1 x frame 370x570mm
- 2 x frames diameter 90mm
- 2 x frames diameter 120mm
- 2 x frames diameter 150mm
- 2 x frames diameter 200mm
- 2 x frames 290x290mm
- 1 x border frame
- 1 cap frame 270 deegres (2 x cap ring, 1 x cap station, 1 x cap driver)
SPECIFICATIONS
- Perfect for home and commercial embroidery
- Maximum embroidery area: 550 x 350 mm, or 22″ x 14″
- Automatic thread trimmer
- Maximum speed 1200 SPM

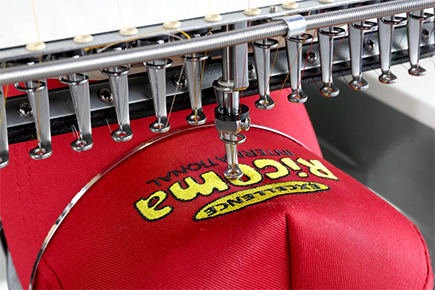

- 270° wide angle cap system
- USB input or direct transmission from PC via serial port or wireless
- Auto color change
- Thread break detection
- Pre-sew design trace capable
- Automatic memory retention
- Servo motor 150W ¬ lowest power consumption in the industry
- Built-in universal power supply, 110V/60Hz and 220V/50Hz self adaptable worldwide
- DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration
- Light weight: 90 kilograms or 200 lbs. It can be easily moved around
- Heavy duty steel stand with wheels to ensure both stability and mobility
- Environment friendly packaging
- Optional laser trace device available
- Emergency stop
