DESCRIPTION

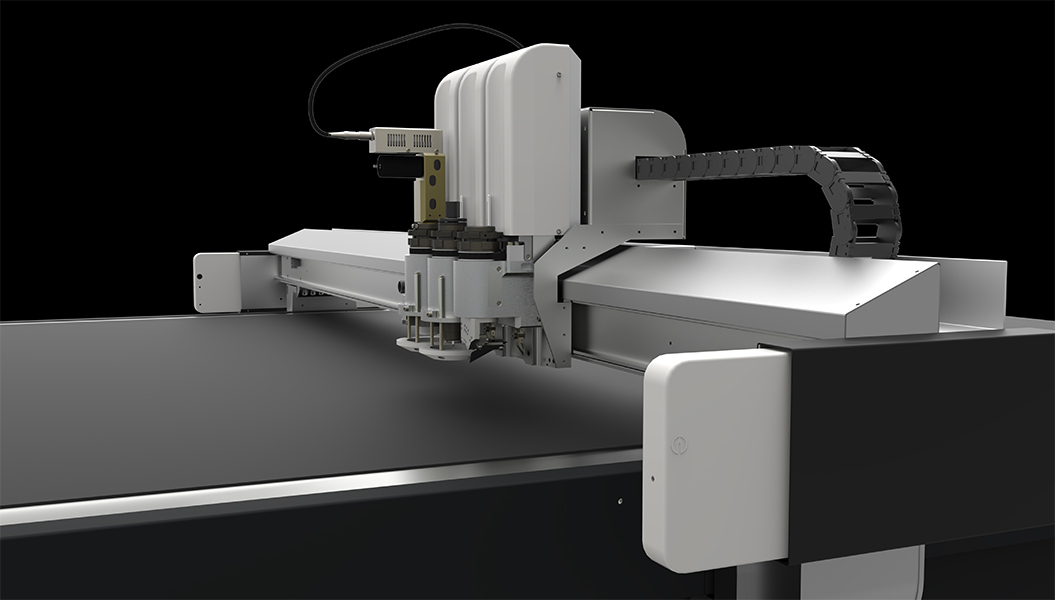

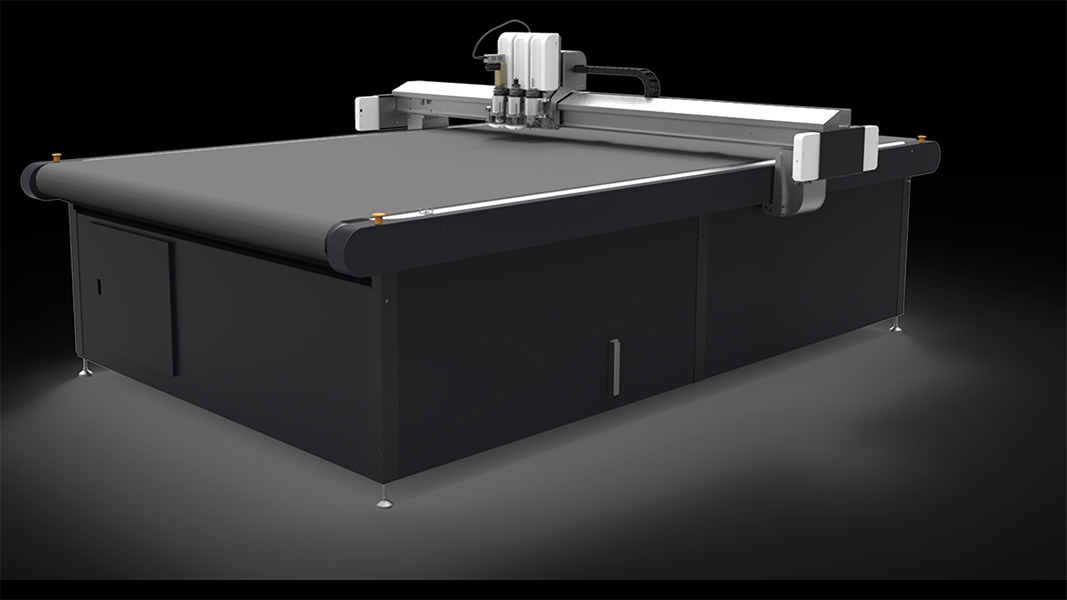

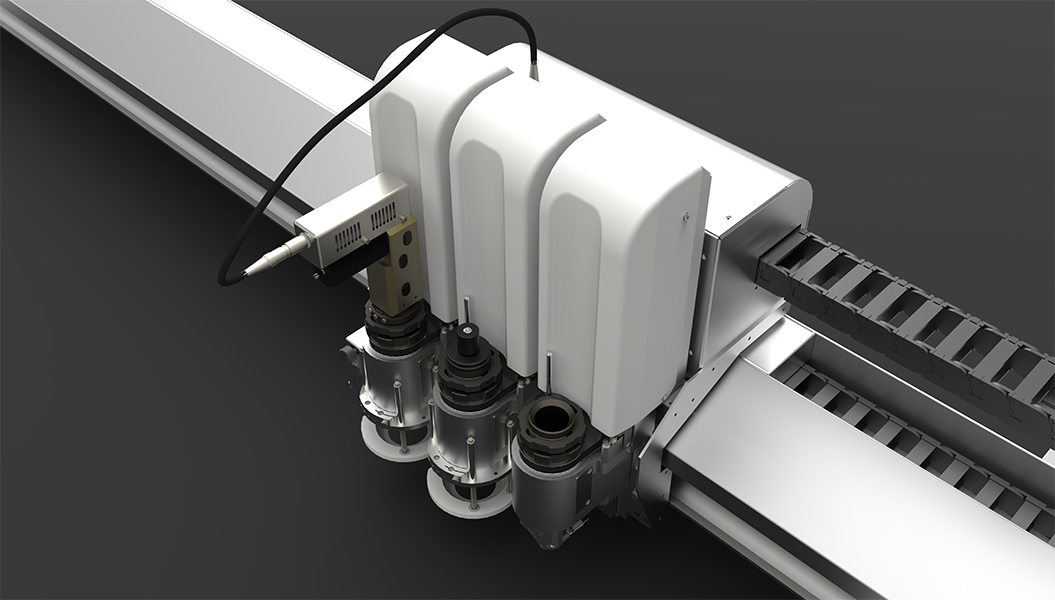

IECHO BK3 high precision digital cutting system can realize through cutting, kiss cutting, milling, punching, creasing and marking functions with high speed and high precision. With stacker and collecting system, it can complete the material feeding and collecting quickly. BK is quite suitable for sample making, small scale production and production line in sign, advertising, printing and packaging industries. BK cutting system is the real all-around champion in material cutting.
MODELS
- IECHO BK3 1713
- IECHO BK3 2513
- IECHO BK3 2517
SPECIFICATIONS
- Cutting Area: 1700 x 1300 mm / 2500 x 1300 mm / 2500 x 1700 mm
- Machine dimension: 2500 x 2100 mm / 3200 x 2100 mm / 3200 x 2400 mm
- Cutting speed: 1500 mm/s
- Cutting Accuracy: 0.1 mm
- Cutting Thickness: 50 mm
- Data Format: DXF, HPGL, PDF
- Interface: Serial Port
- Media: Vacuum System
- Pump Power: 7.5 kW / 9 kW
