DESCRIPTION

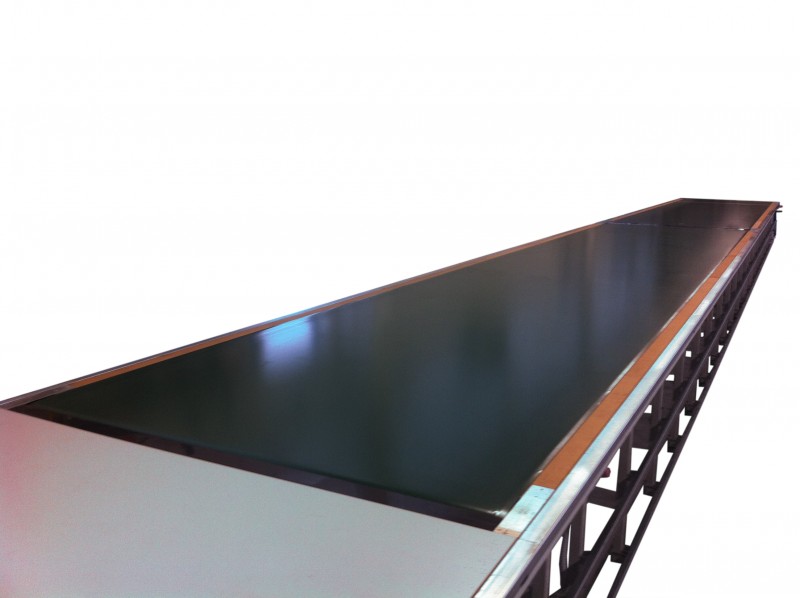

The combination between conveyorized tables and automatic cutter provides the ideal solution for a fast and tension-free movement of the fabric lays from the spreading area to the cutting one. Being built on the same sturdy construction of the basic spreading table,it has all its features. Table top made in "PVC" band with textile internal structure is placed over a 3 cm "MDF" plane.
The conveyorized spreading table speed can be synchronized to the cutter or between two conveyor tables mounted on the same line. Each section is equipped with a motorization kit. The automatic or semi-automatic forward or reverse belt progress is activated by a simple control panel. Caron spreading tables are suitable for all Caron spreaders.
Holding table legs (Each is 75 cm in lenght) with adjustable feet, strong galvanized spreader rails mounted on both side of the table and a double operator platform rail, assure a sturdy table construction. The 3 cm table top made in "noble fibre" rimmed in ABS (resistant rigid plastic) assures fabric fluidity, table shock-resistance and long working life.
SPECIFICATIONS
- Module of 1,5 m
- Adjustable height.
- Legs Lenght 75 cm.
- Working width from 160 to 320 cm. (on request different measures)
- Every length available starting from 1,5 m
- Table top made of noble fibre rimmed in ABS, thickness 3 cm.
- Shock Resistance
