DESCRIPTION
Caron’s Loader lifts fabric rolls from the floor to the spreader cradle and vice versa facilitating the loading and unloading operations. A gentle passage of the fabric roll to the tilted spreader cradle is ensured by the automatic tilting of the platform at the upper position.
Fast and smooth on its movements, the elevator is ideal for time saving during the roll change. Intuitive and clear operator panel for its easy handling. The safety system ensures automatic stop of the platform in presence of obstacles. The loading system and the manual or motorized transfer table on rails can be moved together with the addition of an optional joint-kit and of guide rails to be installed on the floor. Combinable with all Caron spreaders.
On request Loader can be with different width and weight.
MODELS
- Loader 100: maximum roll weight 100 Kg. Diameter 90 cm.
- Loader 200: maximum roll weight 200 Kg. Diameter 90 cm.

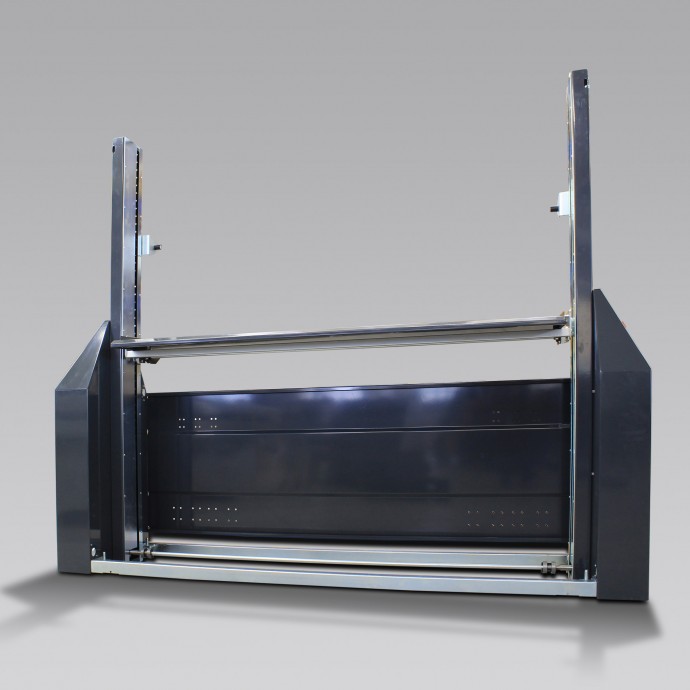

- Loader Titan: maximum roll weight 100 Kg (York)
- Can be made, on request, loaders with different measures and weights.
