DESCRIPTION

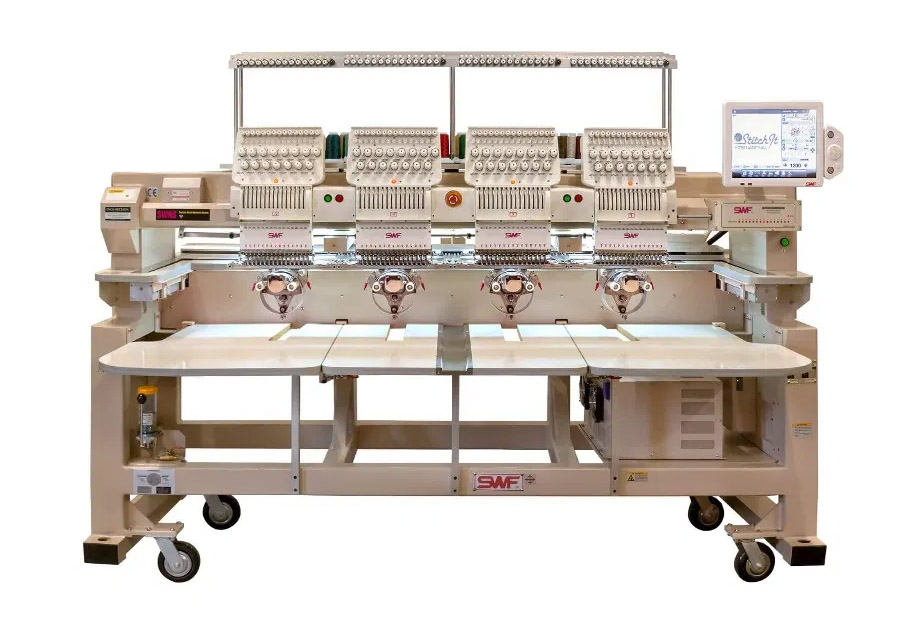

SWF KS-Series (4 Head) is the most productive tubular multi-head in the SWF Range that can stitch at 1,200 spm as standard, and faster than any other tubular multi head currently available, making it the most productive machine on the market. Incorporating a standard stitching field of 450mm x 400mm also makes it the biggest stitching field on a compact design machine available.
It’s available in 9, 12 or 15 colour versions. Using “advance technology” such features as; Servo motors for smooth and accurate stitching; “ECP” electronically controlled presser foot.The K-Series machine also includes the newest hung panto-graph drive to aid the smoothness and efficiency in the stitching process.
The SWF KS Series 4-head is controlled by it’s 15+ inch LED full Colour Touch Screen display and can hold up to 400 Embroidery Files, Handle up to 40,000,000 (40 Million) stitches of which each stitch file can be up to 20,000,000 stitches in size making the new SWF KS Series unique! With all of these new benefits and features you can produce up to 20% more productivity than any other embroidery machine in the world stitching at 1,000spm!
SPECIFICATIONS
- Max Speed: 1200 spm
- Stitching Length: 0.1~12.7
- Motor Main: Servo Motor x1
- Motor X-Y: Servo Motor x2
- Electricity: 1Phase 100V , 110V , 120V , 200V , 220V , 240V (50/60Hz)
- Power Consumption: 2 head: 850W /4 Head , 6 Head , 8 Head: 1.2 kW
- Bobbin Winder: Standard
- Upper thread holding: Standard
- Lubrication System: Semi-Auto
- Operation Panel: 15.1 Touch LCD
- Hook: Standard Hook
- Memory Capacity: 2.000.000 Stitch / Designs
- Memory Media: USB
- Safety Device: Emergency Stop Switch, Error code message
